Displacement Sensors

> Displacement Sensors > micro LVDT

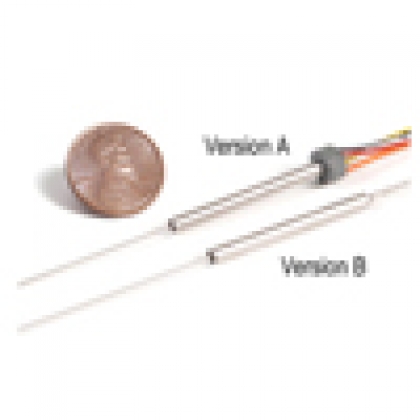

SM Series LVDT - 2.3 mm Diameter

This micro-miniature LVDT is designed for high resolution position measurement in tight places. It is layer wound on metal coil-form provides excellent stability, while ferromagnetic housing takes care of the electromagnetic and electrostatic shielding.

Miniature Gage Head GH-SM series LVDT

This micro-miniature spring-loaded LVDT is designed for high resolution position measurement in tight places.
It is layer wound on metal coilform provides excellent stability, while ferromagnetic housing takes care of the electromagnetic and electrostatic shielding.

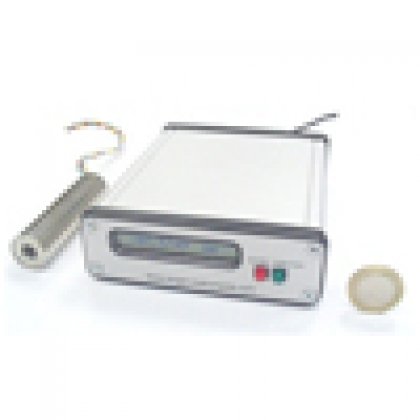

USB-10 LVDT Conditioner Unit

21 bit resolution.
Software selectable scale and zero adjustment.
Software selectable digital filtering and conversion rate.
Optional system linearization function by supplier.
Single line, 16 alphanumeric characters LCD display.
Programmable 2 points digital set points.
Additional RS 232 data communication channel.
Supporting six, five and four wire LVDTs.
Additional analog output.
No power supply needed when using USB channel.
Alphanumeric panel readout or PC installed software.
Supplied with operating and data collecting software.
USB 1.1 compatible.

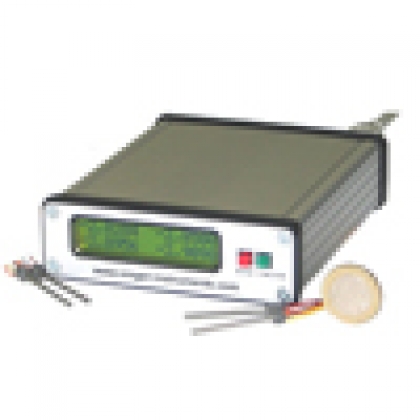

USB-10-4 LVDT Conditioner Unit

1÷4 Channels
21 bit resolution, at 7 or 800Hz Output Rate
Software selectable gain and zero adjustment
Digital filtering and conversion rate
Software selectable linearization
16x2 alphanumeric characters LCD display
Programmable multi condition digital limit output
USB data communication channel
Supporting six, five and four wire LVDTs
Active analog filters
No power supply needed when using USB channel.
Readout by alphanumeric panel or PC installed software
Supplied with operating and data collecting software

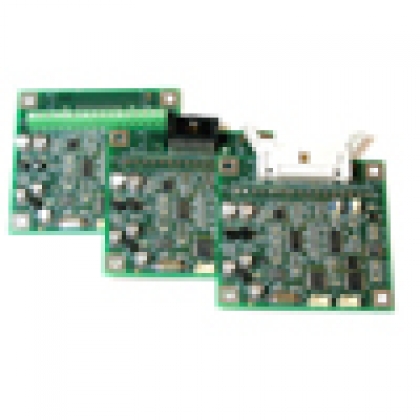

LVDT Digital Signal Conditioner EL-35 Series

Pin to pin replacement for EL-15 card
Same dimensions as EL-15
Power supply: unregulated ±12 to ±15 Volt DC
Compatible with 4, 5 or 6 wire LVDTs
Optional on board ZERO and GAIN trimmers, or digital calibration
3 connector options
4 holes for #4 UNC screws

LVDT Control Box CB-100 Series

The CB-100 Series Boxes are ideal for operating
low impedance LVDTs for industrial and test applications.
The CB-100A Control Box includes Signal Conditioner Card
model EL-10. It is full function Signal Conditioner for 5 or 6 wire
LVDTs and analog output ±10 VDC max and 10mA max.
The CB-100B Control Box includes Signal Conditioner Card
model EL-15. It is a full function Signal Conditioner for 4, 5 or 6 wire
LVDTs and analog output ±5 VDC max and 10mA max.
